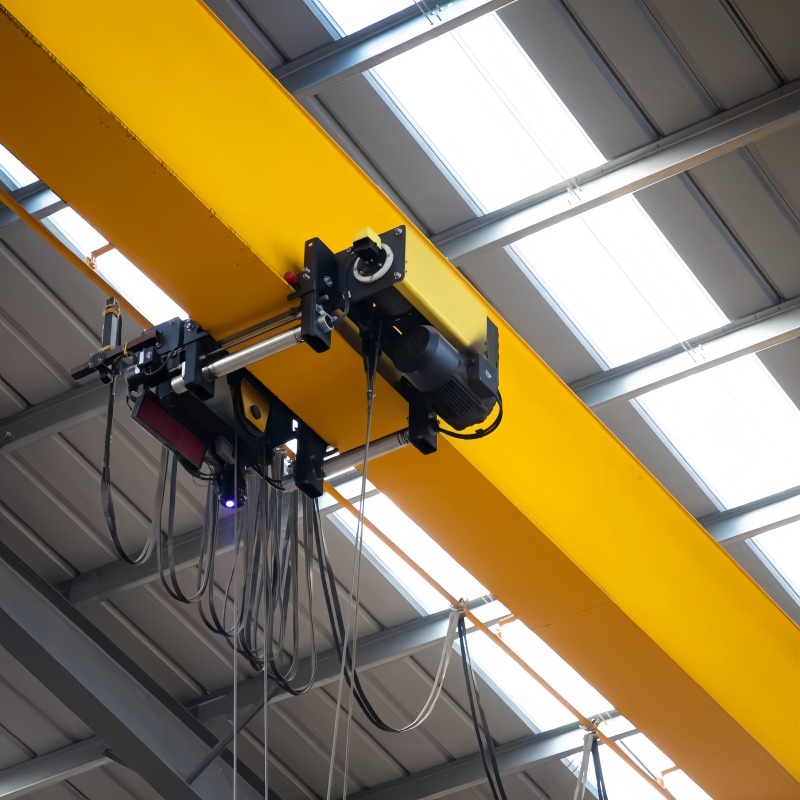

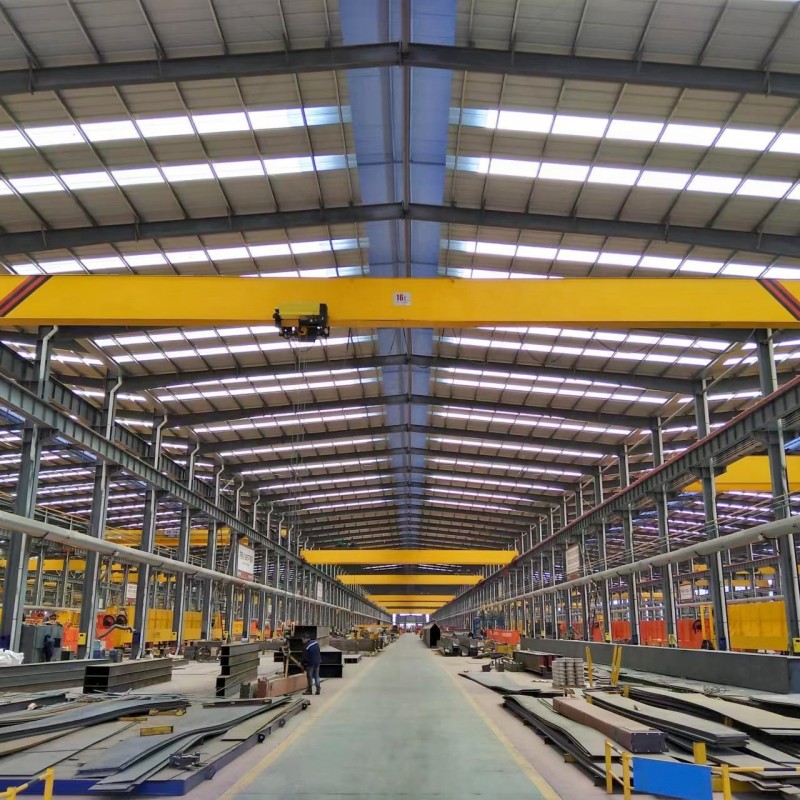

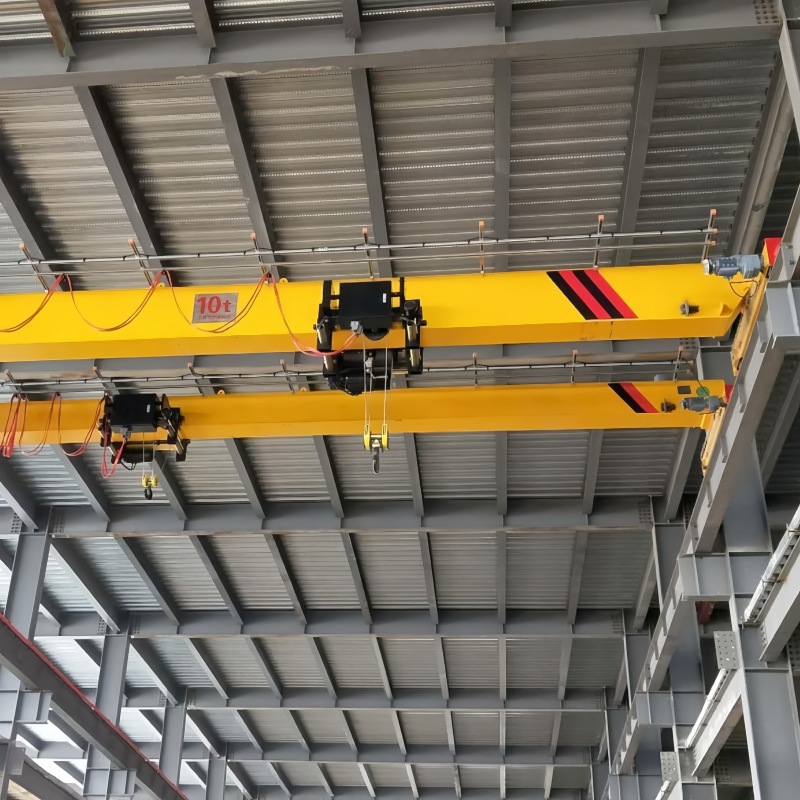

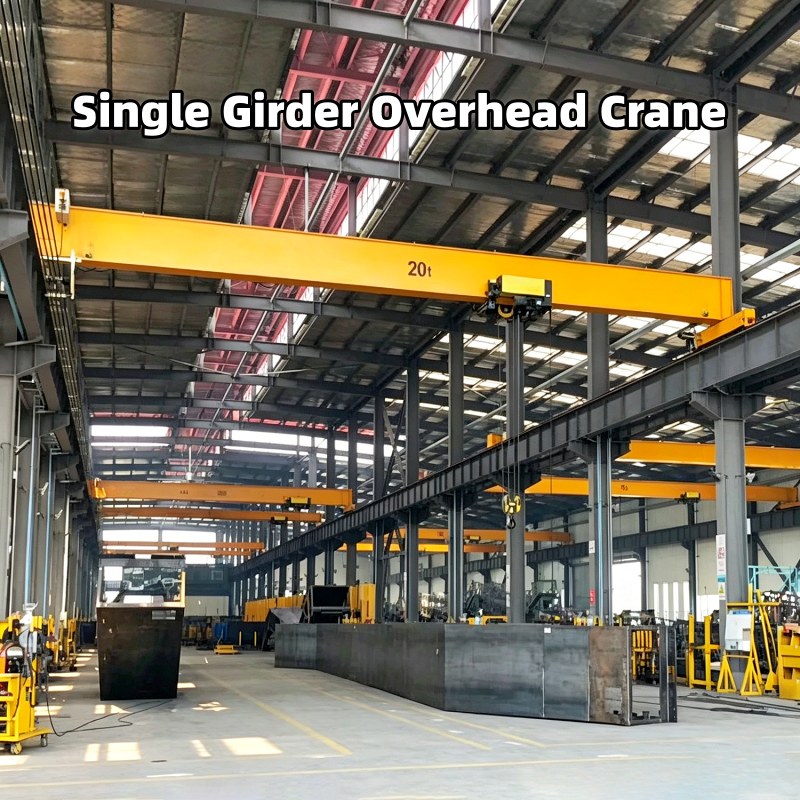

Construction Use Single Girder Overhead Crane is a lifting device with one main beam, designed to move heavy materials horizontally and vertically inside workshops, factories, and warehouses. It is widely used for material handling, equipment installation, and production operations.
Artikelnummer :
TSH-106Produktherkunft :
ChinaFarbe :
Yellow, red or customizedGewicht :
5600 kgHubhöhe :
6m~18mHubkraft :
0.5t-50tonSpanne :
10.5~31.5m
| Product Name | Overhead Workshop Crane Manufacturing | ||||||
| Lifting Capacity | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 16 Ton | 20 Ton |
| Span(m) | 9.5, 11, 12.5, 16, 19.5, 22.5, 24 | ||||||
| Lifting Height(m) | 6, 9, 12, 15 18 | ||||||
| Lifting Speed(m/min) | 5/0.83 | 4/0.67 | |||||
| Hoist Traveling Speed(m/min) | 2-20(Frequency Conversion) | ||||||
| Crane Traveling Speed(m/min) | 2-20(Frequency Conversion) | ||||||
| Work Duty | A5 | ||||||
| Power Source | 3 Phase, 380V, 50HZ, Customized | ||||||
PRODUCT HIGHLIGHTS:
1.Single Girder Overhead Crane has light weight, compact structure and low energy consumption. The European crane adopts a unique design concept, featuring small size, light weight and small wheel pressure.

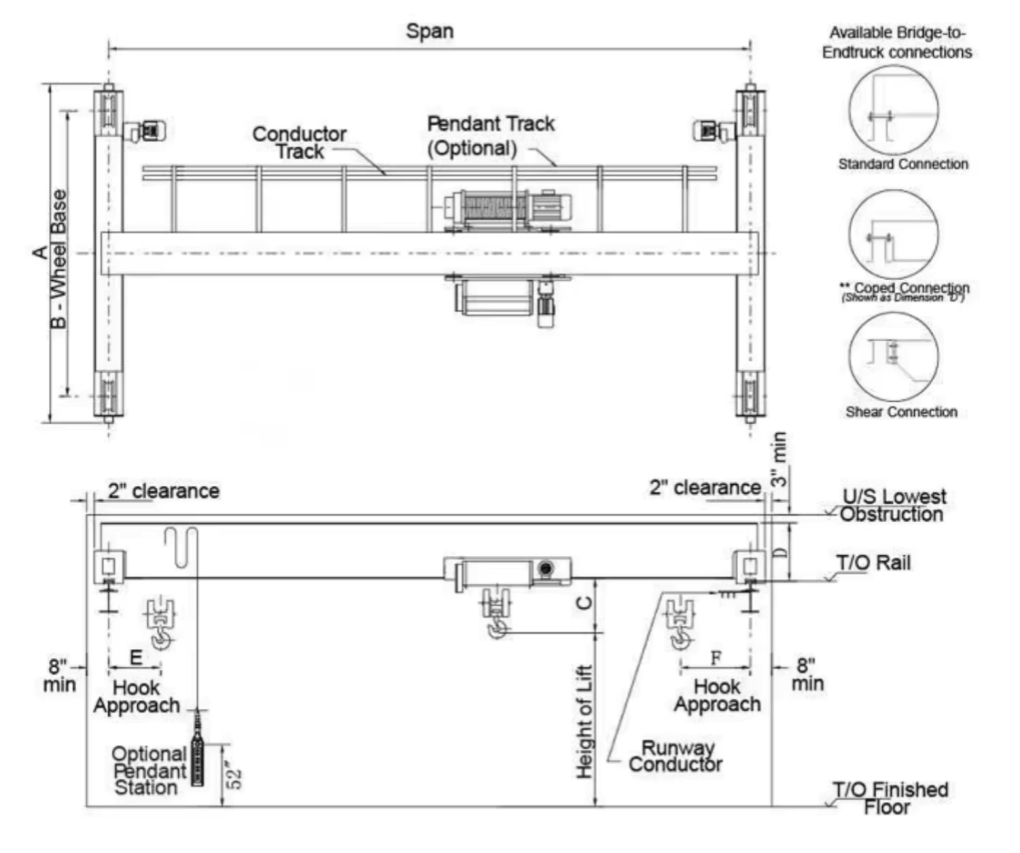

2.Compared with the traditional crane, the limit distance from the hook to the wall is the smallest, and the clearance height is the lowest.
3.The Single Beam Overhead Crane can work closer to the front, and the lifting height is higher, which actually increases the effective working space of the existing plant.
4.Because Overhead Cranes have the characteristics of light weight and small wheel pressure, the new plant space can be designed to be smaller and more complete.
FAQ:
Q1: What is a single girder overhead travelling crane?
A1: It is a lifting device with one main girder, designed to move materials efficiently inside workshops, factories, and warehouses.
Q2: What are the main components of a Single Girder Overhead Crane for Workshop?

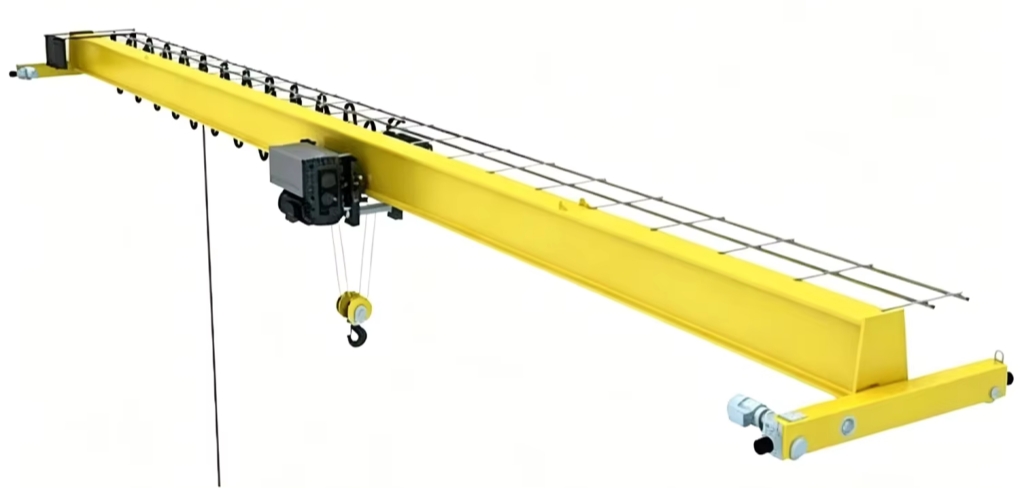

A2: The main components include the main girder, end carriages, electric hoist, trolley, motors, and control system.
Q3: What is the typical lifting capacity of a Single Beam Overhead Crane Factory?
A3: The lifting capacity depends on the crane design and model. It can be customized according to specific project requirements.
Q4: Where can a Wholesale Single Beam Overhead Crane be used?
A4: It is widely used in manufacturing plants, steel structure workshops, warehouses, assembly lines, and machinery workshops.
Q5: What is the difference between a Single Girder and a Double Girder Overhead Crane?
A5: A Single Beam Crane Manufacturer has one main beam and is generally lighter and more economical, while a Double Girder Crane has two main beams and is suitable for heavier loads.
Q6: Can a Single Beam Overhead Crane for Workshop be customized?
A6: Yes. The lifting capacity, span, lifting height, and control system can be customized to meet different operating requirements.
Q7: How does a Electric Single Girder Overhead Crane operate?
A7: The electric hoist lifts and lowers materials, while the trolley and crane travel along their respective directions to move loads within the working area.
Q8: Is a Electric Single Girder Overhead Crane suitable for steel structure workshops?
A8: Yes. It is suitable for handling steel components, tools, machinery parts, and other materials in steel structure workshops.
Q9: What power supply does a Single Girder Overhead Crane require?
A9: The power supply depends on the crane configuration and local electrical standards. Voltage and frequency can be specified when ordering.
Q10: What should be considered when choosing a single girder overhead crane design?
A10: Important factors include lifting capacity, span, lifting height, duty cycle, workshop layout, operating environment, and safety requirements.
